20W outdoor RGB Linear LED Wall Washer mount light controlled by DMX 512

Çin Shenzhen Maysee Technology Ltd Sertifikalar
Çin Shenzhen Maysee Technology Ltd Sertifikalar
Thanks for checking up on our tests. The lights are very nice. Very bright. Very good colors.

—— Phil

Your lights have a strong quality feeling over for its body. Thats great . Would like to work with you, you seems like a great agent to work with.

—— Julien

Hello Natalie, we received the packages today…..products looks great…..I will reply you after installation is done

—— Allan

Ben sohbet şimdi

20W outdoor RGB Linear LED Wall Washer mount light controlled by DMX 512

20W outdoor RGB Linear LED Wall Washer mount light controlled by DMX 512
20W outdoor RGB Linear LED Wall Washer mount light controlled by DMX 512 20W outdoor RGB Linear LED Wall Washer mount light controlled by DMX 512

Büyük resim :  20W outdoor RGB Linear LED Wall Washer mount light controlled by DMX 512

Ürün ayrıntıları:

Place of Origin: Shenzhen, China
Marka adı: Maysee
Sertifika: CE/ROHS
Model Number: MS-WW-RGB-L3

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1pc
Fiyat: negotiable for better price
Packaging Details: standard carton box for export
Delivery Time: 10-15 days upon receipt of the deposit
Payment Terms: T/T or Western Union or Paypal
Supply Ability: 20000 pcs
Detaylı ürün tanımı
Model numarası.: MS-WW-RGB-L3 Malzeme: alüminyum
LED Tipi: Cree Lens açısı: 120°
Giriş gerilimi: 24VDC Anma gücü: 10W
Boyut: 1000mm(U)x42mm(G)x60mm(Y) Işık kaynağı: RGB/R/G/S/B
Kontrol modu: DMX/açma-kapama
Vurgulamak:

Doğrusal led duvar yıkayıcı ışık

,

renk değiştiren led duvar yıkayıcı

,

IP67 20W led duvar yıkayıcı montaj ışığı

20W linear outdoor RGB LED wall washer mount light controlled by DMX 512



Features

1. System Includes:  Modules + Aluminum Mounting Profile +
Diffuser/Cover + Power-Data Equipment
2. Fully sealed for use in dry, damp or wet locations
3. 80 x 3-in-1 RGB or Monochromatic LEDs per 1000mm
4. 10W maximum power consumption per 500mm or 20W per meter
5. Up to 4000 cd/m2 diffuser tube luminance
6. Architectural grade anodized mounting profile, no visible fasteners
7. Frame per second: >100 FPS at DMX512 control
8. Dimmable range: 0~255 steps at DMX512 dimming control
9. Built-in constanct-current circuit with PWM signal>400Hz
10. IP67



Specification

Model No. MS-WW-RGB-L3
Rated Power 20W(max.)
Length 1000mm
Net Weight 1.8kg
Q'ty of LEDs 80pcs
Pixels per Bar 8 pixels
DMX Channel per Bar 8x3-CH
Pixel Pitch 12.5mm
WidthxDepth 42mmx60mm
Input Voltage 24-48VDC
LED Brand CREE
Lens 120
Light Color SMD (3-in-1) or mono-color
Material anodized aluminum housing &  Acrylic diffuser
Bar Intensity 35Lm/W (RGB)
Operating Humidity 0-99%RH
Operation Temperature  -20℃-70℃
Life Time 50,000 hrs
IP Rating IP67
Control Mode DMX512 for RGB version/on-off switch for mono version
Mounting surface-mounting
Warranty 3-year





Description

MS-WW-RGB-L series is an ultra slim LED profile which provides tremendous flexibility to integrate seamlessly with architectural structures. It brings urban landscapes to life with dynamic color-changing images. MS-WW-RGB-L series also illuminates facades and intrinsic building details with vivid, color-changing light to accentuate building structures.  It comes with the standard length 500mm/1000mm for various application. Made with durable, high-brightness and energy-efficient components. Well to create seamless lighting effects. With both RGB multi-color and mono-color for option. Compatible with DMX control for RGB version, just on-off switch control is easy to run the mono version.

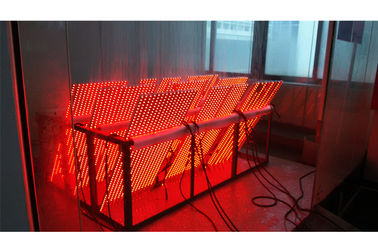

20W outdoor RGB Linear LED Wall Washer mount light controlled by DMX 512 0

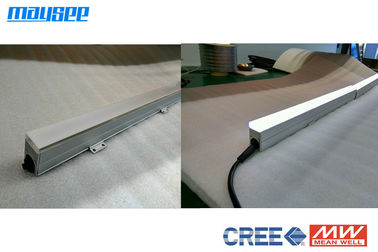

20W outdoor RGB Linear LED Wall Washer mount light controlled by DMX 512 1



20W outdoor RGB Linear LED Wall Washer mount light controlled by DMX 512 2
